# Workflows Hub

Build powerful sequential automation workflows with AgenticFlow's visual drag-and-drop builder. No coding required.

## What are Workflows?

Workflows are **linear, sequential automation flows** that execute step-by-step tasks by connecting nodes together. Each workflow:

* Executes nodes **one by one, from top to bottom**
* Processes data through a **linear chain of nodes**
* Integrates with **300+ tools (MCPs)**
* Runs **on-demand or on schedule**
* Follows a **single execution path** (no branching or loops)

## How Workflows Work

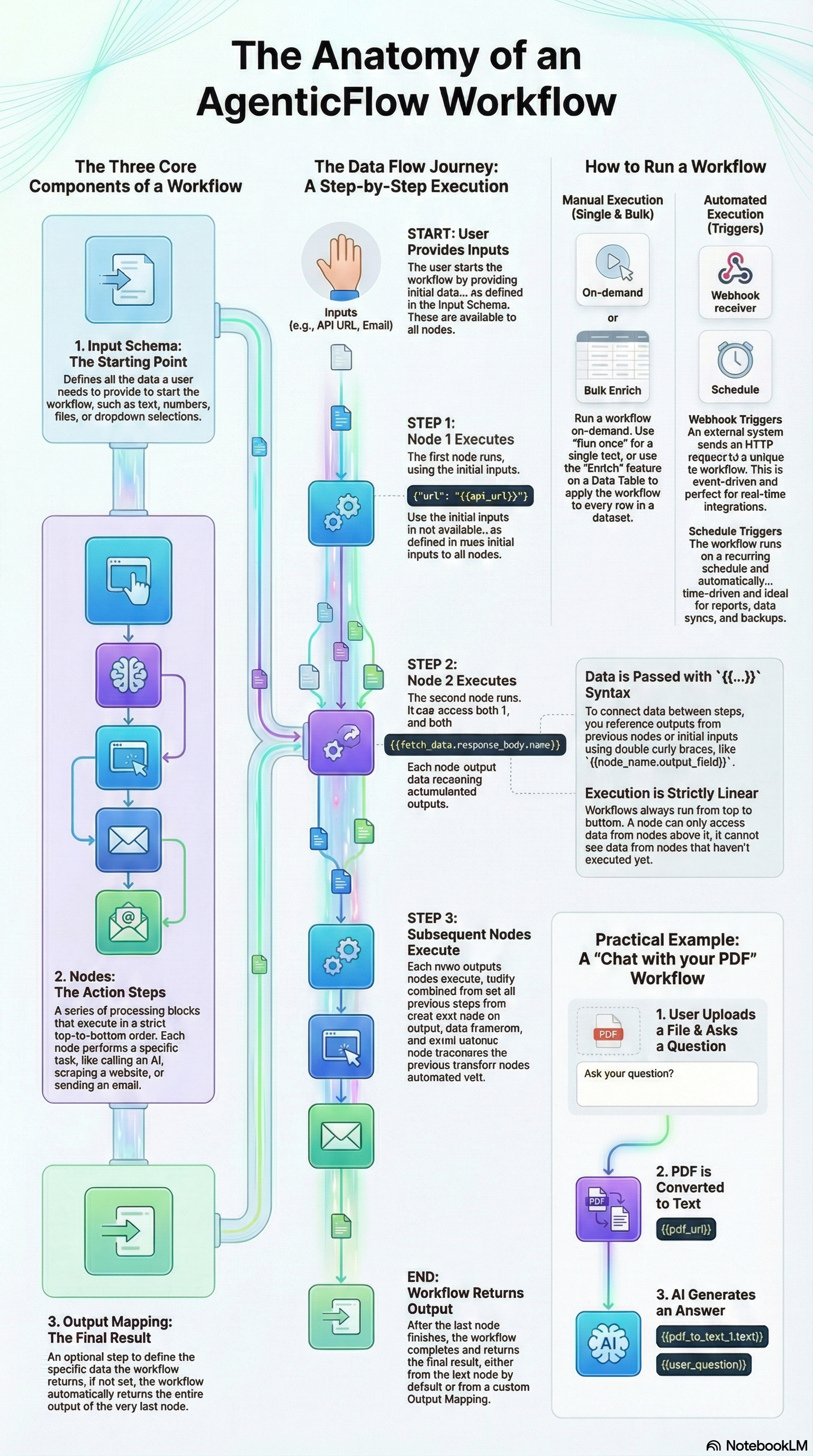

### Core Concepts

<figure><img src="/files/xtHFmwHaUIB1q4n15YnU" alt="" width="563"><figcaption></figcaption></figure>

Every workflow consists of three main components:

**1. Input Schema** (What data does the workflow need?)

* Define parameters users provide when starting the workflow
* Supports multiple input types: text, numbers, files, dropdowns, JSON, etc.
* Each input has a unique name that nodes can reference

**2. Nodes** (What processing steps happen?)

* The workflow executes nodes **sequentially from top to bottom**
* Each node has a unique name (e.g., `web_scraper`, `send_email`)
* Each node performs a specific task (API call, data transform, AI generation, etc.)
* Nodes reference data using parameter substitution: `{{input_name}}` or `{{node_name.output_field}}`

**3. Output Mapping** (What data does the workflow return?)

* Define which node outputs to return as final workflow results
* Map output fields to node outputs: `{"result": "{{final_node.output}}"}`
* **Optional**: If not configured, the workflow automatically returns the last node's output

### Execution Flow

Workflows execute in a **strict linear order**:

```
User Inputs → Node 1 → Node 2 → Node 3 → ... → Node N → Workflow Output
```

* **No branching**: Every node executes every time
* **No loops**: Nodes run exactly once in sequence
* **Top-to-bottom**: Execution order matches visual layout
* **Data flows forward**: Later nodes can reference earlier nodes' outputs

### Parameter Substitution

Connect data between workflow steps using `{{...}}` syntax:

**Reference workflow inputs:**

```
{{user_email}}
{{website_url}}
{{search_query}}
```

**Reference node outputs:**

```
{{web_scraper.content}}
{{llm_analyzer.summary}}
{{api_call.response}}
```

**Use in node configurations:**

```json
{
  "email_body": "Here's your analysis: {{llm_analyzer.summary}}",
  "recipient": "{{user_email}}",
  "subject": "Results for {{search_query}}"
}
```

### Output Mapping Behavior

The workflow's output mapping is **optional** and controls what data is returned:

**When Output Mapping IS Defined:**

```json
{
  "summary": "{{analyzer.result}}",
  "status": "{{email.success}}",
  "timestamp": "{{current_time.value}}"
}
```

* Returns only the specified fields
* Can combine outputs from multiple nodes
* Gives you full control over the response structure

**When Output Mapping IS NOT Defined:**

* The workflow automatically returns **all outputs from the last node**
* Simpler for workflows where you only care about the final step's result
* No need to manually map outputs

**Example:**

```
Node 1: fetch_data → {data: [...], count: 10}
Node 2: process_data → {processed: [...], errors: []}
Node 3: save_results → {success: true, id: "123"}

Without output mapping → Returns: {success: true, id: "123"}
With output mapping → Returns: Whatever you specify
```

## When to Use Workflows

**Perfect for**:

* **Sequential automation**: Step-by-step processes with a clear order
* **Data processing pipelines**: Transform data through multiple stages
* **API orchestration**: Chain multiple API calls together
* **Scheduled tasks**: Run automated processes on a schedule
* **Tool integration**: Connect different services in sequence
* **Batch operations**: Process data in a predictable, linear way

**Use Agents instead when**:

* You need conversational interaction
* Real-time chat with users
* Interactive Q\&A systems
* Dynamic decision-making during execution

**Use Workforce instead when**:

* You need multiple AI agents collaborating
* Complex multi-agent orchestration
* Dynamic routing between different processing paths

***

## Your First Workflow: A Simple Example

Let's build a workflow that scrapes a website and sends the content via email.

### Step 1: Define Inputs

```json
{
  "website_url": {
    "type": "string",
    "title": "Website URL",
    "description": "URL to scrape"
  },
  "recipient_email": {
    "type": "string",
    "title": "Email",
    "description": "Where to send results"
  }
}
```

### Step 2: Add Nodes (Top to Bottom)

**Node 1: `web_scraper`** (Scrape the website)

* Node type: `web_scraping`
* Input config: `{"url": "{{website_url}}"}`

**Node 2: `send_email`** (Email the content)

* Node type: `send_email`
* Input config:

  ```json
  {
    "recipient": "{{recipient_email}}",
    "subject": "Website Content",
    "body": "{{web_scraper.content}}"
  }
  ```

### Step 3: Define Output (Optional)

**Option A: Custom Output Mapping**

```json
{
  "status": "{{send_email.success}}",
  "content": "{{web_scraper.content}}"
}
```

**Option B: No Output Mapping**

* If you don't define output mapping, the workflow automatically returns the output from the last node (`send_email`)

### Execution

When you run this workflow:

1. User provides `website_url` and `recipient_email`
2. `web_scraper` node executes, scrapes the URL, outputs `content`
3. `send_email` node executes, sends email with scraped content
4. **Workflow returns**:
   * With custom mapping: `status` and `content` fields
   * Without mapping: All outputs from `send_email` node

***

## Getting Started

### [Workflows Quickstart](/get-started/workflows-quickstart.md)

Build your first workflow in 10 minutes.

### [Data Flow & Type Handling](/workflows/data-flow-and-types.md)

**Essential guide** to how data flows between nodes and handling data types correctly. Learn how to reference data and avoid type mismatch errors.

***

## Workflow Building Blocks

### [User Inputs](/workflows/workflow-inputs/text-input.md)

Collect data to start your workflow:

* Text Input
* Number Input
* File Upload
* Date/Time Picker
* Dropdown Select
* Checkbox
* Multi-select
* Email Input
* URL Input
* Phone Input
* JSON Input
* Rich Text Editor

### [Variables](/workflows/variables.md)

Manage constants, configuration, and secrets across your project:

* **Project Variables** - Global values shared across workflows
* **Workflow Variables** - Local configuration for a single workflow
* **System Variables** - Auto-injected runtime context (User ID, Workflow ID)
* **Secret Management** - Secure storage for API keys and tokens

### [Actions](/reference/nodes.md)

Execute tasks and operations:

* **AI/LLM Actions** - AI model calls, text generation, embeddings
* **Data Processing** - Transform, filter, aggregate data
* **Integrations** - Connect to 300+ tools via MCPs
* **API Calls** - HTTP requests, webhooks
* **Database** - Read/write operations
* **File Operations** - Upload, download, process files
* **Notifications** - Email, Slack, SMS
* **Data Transformation** - Format, parse, convert data

### Logic & Control

Control workflow execution:

* **Error Handling** - Handle failures gracefully
* **Delays** - Wait for time or conditions
* **Data Validation** - Verify data meets requirements

### Outputs

Return results and data:

* Display results
* Return JSON
* Download files
* Send notifications
* Trigger webhooks
* Store in database

***

## Advanced Features

### Error Handling

Handle failures gracefully:

* Try/catch blocks
* Retry logic
* Fallback actions
* Error notifications

***

## Workflow Templates

Start with pre-built workflow templates:

### [Browse All Templates](/workflows/templates.md)

**Popular Templates**:

* Data Processing Pipeline
* Email Automation
* Lead Qualification
* Report Generation
* Content Publishing
* File Processing
* API Integration
* Notification System
* Data Synchronization
* Scheduled Batch Jobs

***

## Workflow Patterns

### Common Automation Patterns

**Sequential Processing** (Basic linear flow):

```
Input → Process → Transform → Output
```

**Multi-Step Data Pipeline**:

```
Input → Fetch Data → Transform → Enrich → Validate → Store → Output
```

**AI Analysis Chain**:

```
Input → Extract Text → Analyze with LLM → Summarize → Format → Output
```

**API Integration Flow**:

```
Input → Call API 1 → Parse Response → Call API 2 → Combine Results → Output
```

**Content Generation Pipeline**:

```
Input → Research → Generate Draft → Review → Format → Publish → Output
```

***

## Best Practices

### Workflow Design Best Practices

**Design Principles**:

* Keep workflows focused and modular
* Use clear node names
* Add comments and documentation
* Handle errors gracefully
* Test edge cases

**Performance**:

* Minimize AI calls (they're slower and cost more)
* Reduce unnecessary nodes in the chain
* Cache data when possible
* Keep workflows focused and concise

**Maintainability**:

* Use parameter substitution for flexibility
* Avoid hardcoding values
* Document complex logic
* Version control your workflows

**Error Handling**:

* Always handle API failures
* Provide fallback options
* Log errors for debugging
* Notify on critical failures

***

## Node Reference

AgenticFlow provides **193+ workflow nodes** across categories:

* **AI & LLM** (20+ nodes) - Text generation, embeddings, vision
* **Data** (30+ nodes) - Transform, filter, aggregate, validate
* **Integrations** (300+ MCPs) - Connect to external tools
* **Logic** (15+ nodes) - Conditionals, loops, branches
* **HTTP** (10+ nodes) - API calls, webhooks, requests
* **Files** (12+ nodes) - Upload, download, process, convert
* **Database** (15+ nodes) - SQL, NoSQL operations
* **Text** (20+ nodes) - String operations, parsing, formatting
* **Math** (10+ nodes) - Calculations, statistics
* **Date/Time** (8+ nodes) - Date operations, scheduling
* **Notifications** (10+ nodes) - Email, Slack, SMS, push
* **Utilities** (40+ nodes) - Various helper functions

See [Complete Node Reference](/reference/nodes.md) for all 193+ nodes.

***

## Testing & Debugging

### Testing Your Workflow

1. Start with sample data
2. Run step-by-step
3. Inspect node outputs
4. Test error cases
5. Verify edge cases
6. Performance testing

### Debugging Tools

* Node output inspection
* Execution logs
* Error messages
* Variable inspection
* Step-through execution

***

## Deployment & Scheduling

### Execution Options

* **Manual** - Run on-demand via UI or API
* **Scheduled** - Cron-based scheduling
* **Triggered** - Webhook or event-based
* **API** - Call via REST API
* **Embedded** - Integrate in applications

### Monitoring

* Execution history
* Success/failure rates
* Performance metrics
* Credit consumption
* Error tracking

***

## Integrations

Connect workflows to 300+ tools via MCPs:

### Popular Workflow Integrations

* **Data Sources**: Google Sheets, Airtable, Databases
* **Communication**: Gmail, Slack, Discord, Telegram
* **CRM**: Salesforce, HubSpot, Pipedrive
* **Storage**: Google Drive, Dropbox, S3
* **APIs**: Custom HTTP requests
* **Databases**: PostgreSQL, MongoDB, MySQL

See [All Integrations](/integrations/07-integrations.md)

***

## Troubleshooting

Common issues and solutions:

* **Workflow fails**: Check node connections and required inputs
* **Slow execution**: Optimize node count and parallel processing
* **Integration errors**: Verify MCP credentials and permissions
* **Data issues**: Validate input formats and transformations
* **Timeout errors**: Split long-running tasks, increase limits

See [Troubleshooting Guide](/support/troubleshooting.md) for more help.

***

## Workflows vs Workforce vs Agents

**Use Workflows when**:

* You need **linear, sequential automation**
* Single execution path from start to finish
* Connecting tools and APIs in a predictable order
* Scheduled or triggered batch processing
* Data pipelines with fixed steps

**Use Agents when**:

* You need **conversational interaction**
* Real-time chat with users
* Dynamic decision-making during conversations
* Interactive Q\&A and assistance

**Use Workforce when**:

* You need **multiple AI agents collaborating**
* Complex multi-agent orchestration
* Dynamic routing between different agents
* Advanced coordination patterns

See [Workforce Documentation](/workforce/05-workforce.md)

***

## Related Documentation

* [Agents](/ai-agents/03-agents.md) - For conversational AI
* [Workforce](/workforce/05-workforce.md) - For multi-agent systems
* [Integrations](/integrations/07-integrations.md) - Available MCPs
* [Node Reference](/reference/nodes.md) - All 193+ nodes
* [API Reference](https://github.com/PixelML/agenticflow-docs/blob/main/docs/09-developers/api/endpoints/workflows.md) - Workflow API

***

## Learn More

* [Learning Hub](/learn/02-learn.md) - Foundation concepts and learning resources
* [Video Tutorials](/learn/video-series.md) - Visual learning
* [Use Cases](/use-cases/10-use-cases.md) - Real-world examples
* [Community](/support/community.md) - Ask questions

***

**Ready to build your first workflow?** [Start the Quickstart →](/get-started/workflows-quickstart.md)


---

# Agent Instructions: Querying This Documentation

If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question.

Perform an HTTP GET request on the current page URL with the `ask` query parameter:

```
GET https://docs.agenticflow.ai/workflows/04-workflows.md?ask=<question>
```

The question should be specific, self-contained, and written in natural language.
The response will contain a direct answer to the question and relevant excerpts and sources from the documentation.

Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
